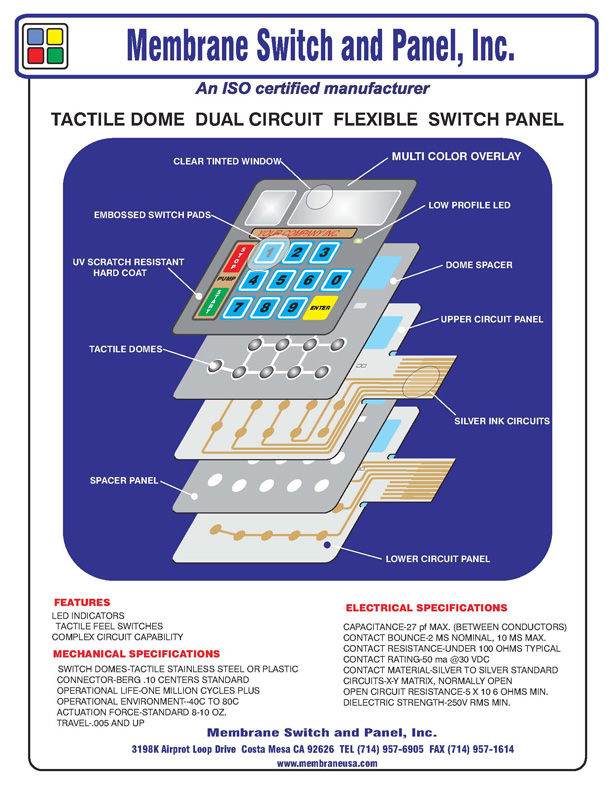

TACTILE DOME DUAL CIRCUIT FLEXIBLE
SWITCH PANEL
FEATURES
- LED INDICATORS
- TACTILE FEEL SWITCHES
- COMPLEX CIRCUIT CAPABILITY
MECHANICAL SPECIFICATIONS
- SWITCH PANEL-TACTILE STAINLESS STEEL OR
PLASTIC
- CONNECTOR-BERG .10 CENTERS STANDARD
- OPERATIONAL LIFE-ONE MILLION CYCLES PLUS
- OPERATIONAL ENVIRONMENT--40C TO 80C
- ACTUATION FORCE-STANDARD 8-10 OZ.
- TRAVEL-.005 AND UP
ELECTRICAL SPECIFICATIONS
- CAPACITANCE-27 pf MAX. (BETWEEN CONDUCTORS)
- CONTACT BOUNCE-2 MS NOMINAL, 10 MS MAX.
- CONTACT RESISTANCE-UNDER 100 OHMS TYPICAL
- CONTACT RATING-50 ma @30 VDC
- CONTACT MATERIAL-SILVER TO SILVER STANDARD
- CIRCUITS-X-Y MATRIX, NORMALLY OPEN
- OPEN CIRCUIT RESISTANCE-5 X 10 6 OHMS MIN.
- DIELECTRIC STRENGTH-250V RMS MIN.
Diagram |
|

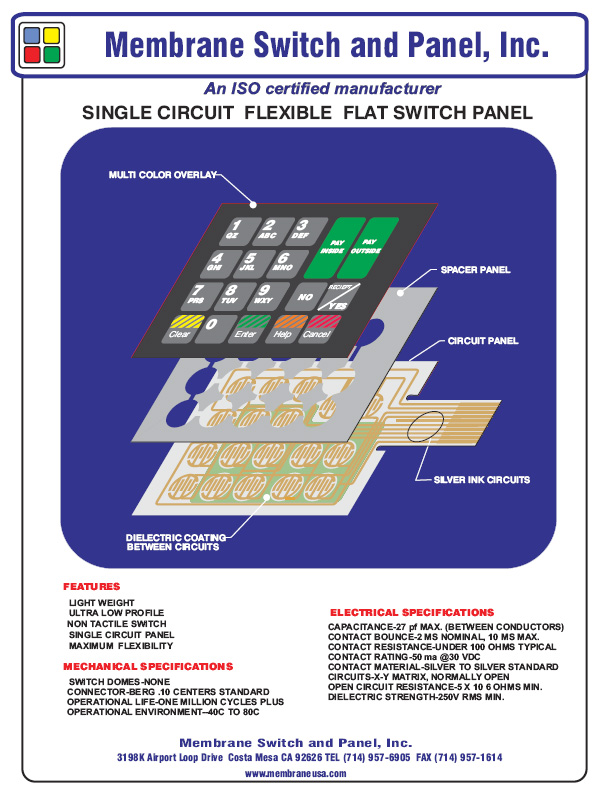

SINGLE CIRCUIT FLEXIBLE FLAT
SWITCH PANEL
FEATURES
- LIGHT WEIGHT
- ULTRA LOW PROFILE
- NON TACTILE SWITCH
- SINGLE CIRCUIT PANEL
- MAXIMUM FLEXIBILITY
MECHANICAL SPECIFICATIONS
- SWITCH DOMES-NONE
- CONNECTOR-BERG .10 CENTERS STANDARD
- CONNECTOR-BERG .10 CENTERS STANDARD
- OPERATIONAL ENVIRONMENT--40C TO 80C
ELECTRICAL SPECIFICATIONS
- CAPACITANCE-27 pf MAX. (BETWEEN CONDUCTORS)
- CONTACT BOUNCE-2 MS NOMINAL, 10 MS MAX.
- CONTACT RESISTANCE-UNDER 100 OHMS TYPICAL
- CONTACT RATING-50 ma @30 VDC
- CONTACT MATERIAL-SILVER TO SILVER STANDARD
- CIRCUITS-X-Y MATRIX, NORMALLY OPEN
- OPEN CIRCUIT RESISTANCE-5 X 10 6 OHMS MIN.
- DIELECTRIC STRENGTH-250V RMS MIN.
Diagram |
